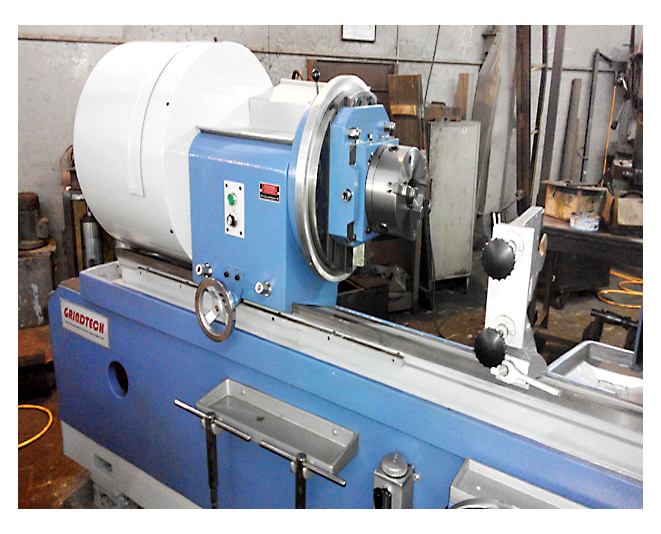

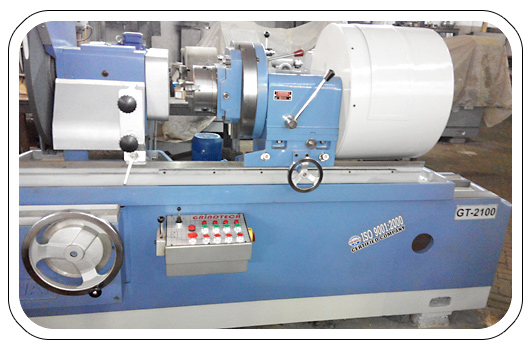

The most-shipped FH model. Heavy diesel trucks, agricultural engines and medium gensets — one machine, most jobs.
Cast-iron Meehanite bed, hardened and ground V-and-flat slideways, hydraulically loaded wheel-head and a closed-loop coolant system with magnetic separator come as standard.
| Type | Specification |
|---|---|
| Max. distance between chucks | 2,100 mm |
| Swing over table | 600 mm |
| Offset of centers (stroke) | 180 mm |
| Max. weight of crankshaft (approx.) | 225 kg |
| Diameter of 3-jaw chucks mounted | 200 mm |
| Workhead rotation speed | 30 – 85 RPM |
| Diameter of grinding wheel | 750 mm |
| Wheel spindle electric motor | 7.5 hp |
| Workhead electric motor | 2 hp |
| Hydraulic pump electric motor | 1 hp |
| Table rapid traverse electric motor | 1 hp |
| Coolant pump electric motor | 0.3 hp |
| Approx. net machine weight | 4,830 kg |
| Approx. length, overall | 4,530 mm |
| Approx. width, overall | 1,900 mm |
| Approx. height, overall | 1,700 mm |
| Standard Equipment |
|---|
| Electric motors and complete control panel |
| Coolant tank and electric pump (complete) |
| Two 3-jaw chucks mounted on machine |
| One straightening gauge with dial indicator |
| One wheel coupling mounted on grinding wheel |
| Wheel balancing stand with arbor |
| Grinding-wheel diamond dresser mounted on steady rest |
| Two steady rests and splash guards |
| Extra Equipment (optional) |
|---|
| Spare wheel coupling (flanges) |
| Wheel radius dresser with diamond nib |
| Automatic continuous sizing gauge |
| Extra grinding wheels (specify thickness) |
| Diamond nib for grinding-wheel dressing — rapid for table |
| Electric feed for table |
| Aluminium ring for chuck |
| Centres-offset checking device |
Note: Please specify colour and voltage of your choice, along with the extra equipment, at the time of placing an order.
