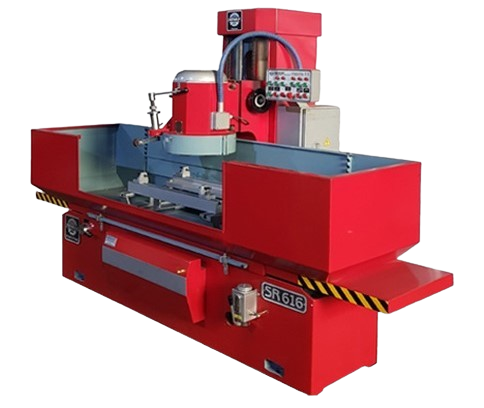

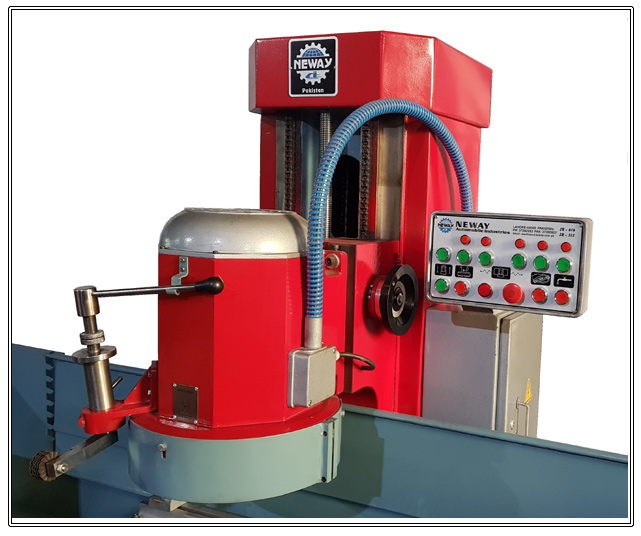

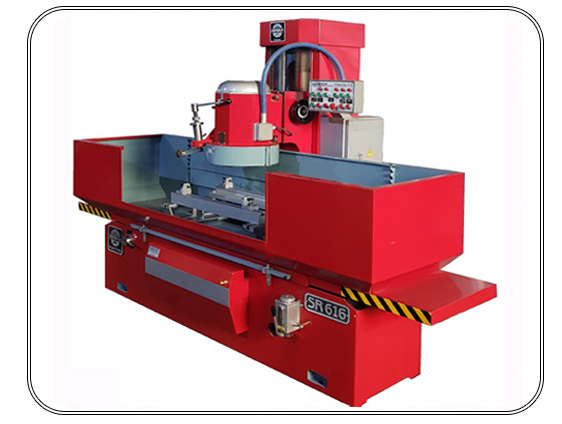

A warped cylinder head will not seal. A scarred block deck will not seal either. The SR-Series surface grinder removes minimum material to bring decks back to true — without removing so much that compression ratio changes appreciably.
Two table sizes cover heads from small petrol engines up to 12-cylinder vee-blocks.
| Type | Specification |
|---|---|
| Table size (standard) | 1200 × 350 mm |
| Table size (large) | 1800 × 500 mm |
| Maximum work height | 350 mm |
| Grinding wheel | 350 × 50 mm (cup wheel option) |
| Table speed | Hydraulic, 5 – 25 m/min variable |
| Cross feed | Automatic, 1 – 10 mm/stroke |
| Down feed | 0.005 mm minimum increment |
| Wheel motor | 5.5 kW |
| Flatness over table length | 0.01 mm |

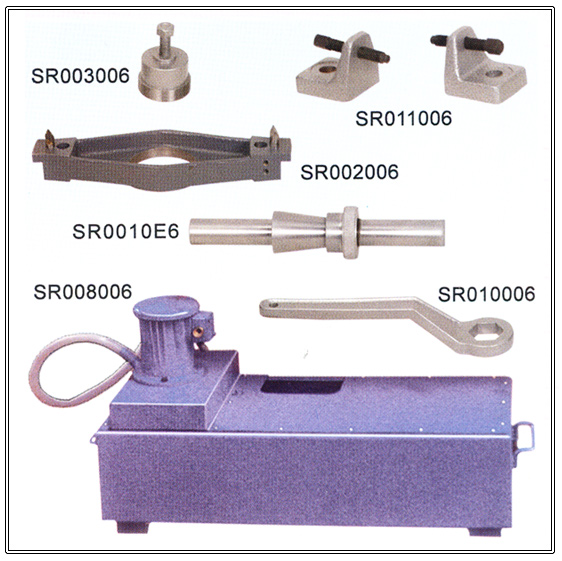

Note: Please specify colour and voltage of your choice, along with the extra equipment, at the time of placing an order.
